Square tubes
Rectangular tubes

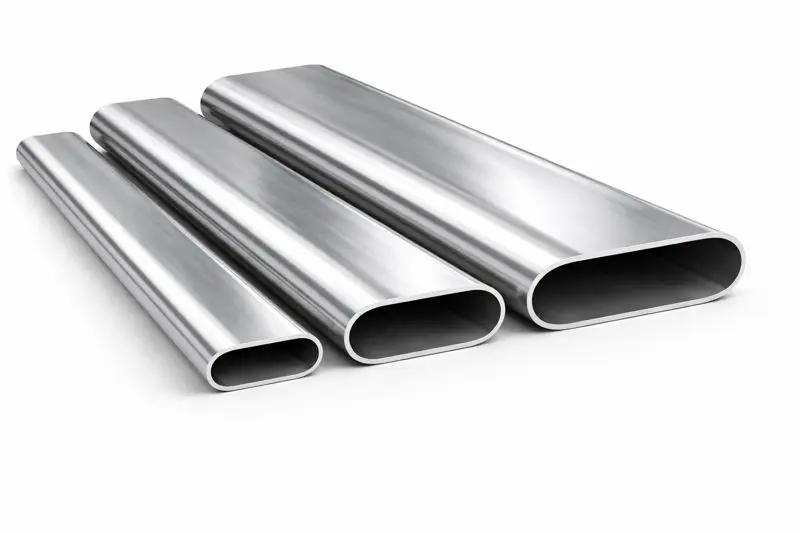

Flat-oval tubes
Round tubes
What is steel profile pipe?
A profiled tube is a steel tube with a complex geometric shape in cross section.
Profiles include: square, rectangular, triangular, flat-oval, etc.
Manufacturer of steel tubes in Ukraine – Ipris-Profil Company
Ipris-Profil manufactures tubular products mainly on a made-to-order basis. This is because the rolled steel products used have an unattractive appearance and increase the cost of the final product for the buyer due to the loss of processing time and additional efforts to combat corrosion.
Range of steel profile tubes
Pipe products are manufactured from cold-rolled and hot-rolled steel of steel grades such as 08 kp, 08 ps, 08 sp, 3 ps, 3 sp. Physical and technical properties of finished products depend on steel properties and yield strength. The range of tubes of various dimensions and wall thicknesses is shown in the table.
Production of steel pipes of square, rectangular, flat-oval section and round electro-welded tubes is one of the directions of work of Ipris-Profil company.
You can buy from us the most popular sizes of pipes 40×20, 20×20, 60×40, 25×25, 30×30, 16 mm, 20 mm, 32 mm, 40 mm, 57 mm, 60 mm and others.
| Square profile tube, size mm | Wall thickness, mm | Rectangular profile pipe, size mm | Wall thickness, mm | |
|---|---|---|---|---|
| 1 5 х 15 C/R | 1 | 30 х 10 C/R | 1 | |
| 15 х 15 C/R | 1,15 | 30 х 10 C/R | 1,15 | |
| 15 х 15 C/R | 1,2 | 30 х 10 C/R | 1,2 | |
| 15 х 15 C/R | 1,4 | 30 х 10 C/R | 1,4 | |
| 15 х 15 C/R | 1,45 | 30 х 10 C/R | 1,45 | |
| 15 х 15 C/R | 1,5 | 30 х 10 C/R | 1,5 | |
| 20 х 20 C/R | 1 | 30 х 20 C/R | 1 | |
| 20 х 20 C/R | 1,15 | 30 х 20 C/R | 1,15 | |
| 20 х 20 C/R | 1,2 | 30 х 20 C/R | 1,2 | |
| 20 х 20 | 1,4 | 30 х 20 | 1,4 | |
| 20 х 20 | 1,45 | 30 х 20 | 1,45 | |
| 20 х 20 | 1,5 | 30 х 20 | 1,5 | |
| 20 х 20 | 1,7 | 30 х 20 | 1,7 | |
| 20 х 20 | 1,8 | 30 х 20 | 1,8 | |
| 22 х 22 C/R | 1,2 | 30 х 20 | 2 | |
| 22 х 22 C/R | 1,4 | 40 х 20 C/R | 1,15 | |
| 22 х 22 C/R | 1,45 | 40 х 20 C/R | 1,2 | |
| 22 х 22 | 1,5 | 40 х 20 | 1,4 | |
| 22 х 22 | 1,7 | 40 х 20 | 1,45 | |
| 22 х 22 | 1,8 | 40 х 20 | 1,5 | |
| 25 х 25 C/R | 1 | 40 х 20 | 1,7 | |
| 25 х 25 C/R | 1,15 | 40 х 20 | 1,8 | |
| 25 х 25 C/R | 1,2 | 40 х 20 | 1,9 | |
| 25 х 25 | 1,4 | 40 х 20 | 2 | |
| 25 х 25 | 1,45 | 50 х 25 C/R | 1,2 | |
| 25 х 25 | 1,5 | 50 х 25 C/R | 1,5 | |
| 25 х 25 | 1,7 | 50 х 30 C/R | 1,15 | |
| 25 х 25 | 1,8 | 50 х 30 C/R | 1,2 | |
| 30 х 30 C/R | 1,15 | 50 х 30 | 1,4 | |
| 30 х 30 C/R | 1,2 | 50 х 30 | 1,45 | |
| 30 х 30 | 1,4 | 50 х 30 | 1,5 | |
| 30 х 30 | 1,45 | 50 х 30 | 1,8 | |
| 30 х 30 | 1,5 | 50 х 30 | 2 | |
| 30 х 30 | 1,7 | 50 х 40 C/R | 1,2 | |
| 30 х 30 | 1,8 | 50 х 40 C/R | 1,5 | |
| 30 х 30 | 1,9 | 60 х 30 | 1,5 | |
| 30 х 30 | 2 | 60 х 30 | 1,8 | |
| 40 х 40 C/R | 1,15 | 60 х 30 | 2 | |
| 40 х 40 C/R | 1,2 | 60 х 40 | 1,2 | |
| 40 х 40 | 1,4 | 60 х 40 | 1,4 | |
| 40 х 40 | 1,45 | 60 х 40 | 1,5 | |
| 40 х 40 | 1,5 | 60 х 40 | 1,8 | |
| 40 х 40 | 1,8 | 60 х 40 | 2 | |
| 40 х 40 | 2 |
*The range of round and flat-oval pipes can be found on the relevant pages of the website.
Production of profile pipes
Before pipe production can begin, the coiled steel must be cut into strips of the required width.
We produce:
The finished strips are wound into coils and placed in a tube bender, where the coils give the required shape.
Electro-welded pipe is produced in measured lengths, class I length accuracy, with a seam formed by welding a straight joint parallel to the axis.
Tube products are manufactured in our factory using ADDISON TM CNC tube bending machines.
Cost of profile tube in Ukraine
The price of steel pipe depends on:
- the cost of rolled steel coils,
- metal thickness,
- grades of steel.
The price of rolled metal products is subject to changes in global trends and changes daily, so please check the current price with our managers.
Let’s note another component of the cost formation: does the company have its own lines for cutting metal into strips or does it cut metal from third parties?
Ipris-Profil works in a closed production cycle, so it offers steel pipes at one of the lowest prices in Ukraine. The price of round-rolled tubes also needs to be clarified by the managers.
Where to buy profile pipe?
It is always cheaper to buy profiled pipes from the manufacturer, whose price is more favourable for the customer. One such manufacturer in Kharkov is the Ipris-Profil plant, located in the city’s industrial district, which produces a wide range of rolled metal tubes.
How much profile steel pipe is in a bundle and in a tonne?
The tables below show the quantity of metal pipe in a bundle as well as the weight of the bundle.
Number of rectangular profile tubes in 1 pack
| Rectangular tube size, mm | Wall thickness, mm | Quantity in 1 pack, pcs. | Weight of 1 pack, kg |
|---|---|---|---|
| 30 x 10 C/R | 1 | 182 | 655 |
| 30 х 10 C/R | 1,15 | 182 | 750 |
| 30 х 10 C/R | 1,2 | 182 | 780 |
| 30 х 10 C/R | 1,4 | 182 | 905 |
| 30 х 10 C/R | 1,45 | 182 | 940 |
| 30 х 10 C/R | 1,5 | 182 | 970 |
| 30 х 20 C/R | 1 | 221 | 1025 |
| 30 х 20 C/R | 1,15 | 221 | 1170 |
| 30 х 20 C/R | 1,2 | 221 | 1225 |
| 30 х 20 | 1,4 | 221 | 1425 |
| 30 х 20 | 1,45 | 221 | 1470 |
| 30 х 20 | 1,5 | 221 | 1515 |
| 30 х 20 | 1,7 | 221 | 1710 |
| 30 х 20 | 1,8 | 221 | 1800 |
| 30 х 20 | 2 | 221 | 2000 |
| 40 х 20 C/R | 1,15 | 200 | 1260 |
| 40 х 20 C/R | 1,2 | 200 | 1315 |
| 40 х 20 | 1,4 | 200 | 1530 |
| 40 х 20 | 1,45 | 200 | 1580 |
| 40 х 20 | 1,5 | 200 | 1635 |
| 40 х 20 | 1,7 | 200 | 1840 |
| 40 х 20 | 1,8 | 200 | 1950 |
| 40 х 20 | 1,9 | 200 | 2055 |
| 40 х 20 | 2 | 200 | 2165 |
| 50 х 25 C/R | 1,2 | 120 | |
| 50 х 25 C/R | 1,5 | 120 | |
| 50 х 30 C/R | 1,15 | 120 | 1020 |
| 50 х 30 C/R | 1,2 | 120 | 1065 |
| 50 х 30 | 1,4 | 120 | 1235 |
| 50 х 30 | 1,45 | 120 | 1285 |
| 50 х 30 | 1,5 | 120 | 1325 |
| 50 х 30 | 1,8 | 120 | 1585 |
| 50 х 30 | 2 | 120 | 1760 |
| 50 х 40 C/R | 1,2 | 120 | 1195 |
| 50 х 40 C/R | 1,5 | 120 | 1490 |
| 60 х 30 | 1,5 | 78 | |
| 60 х 30 | 1,8 | 78 | 1155 |
| 60 х 30 | 2 | 78 | 1285 |
| 60 х 40 | 1,2 | 78 | 855 |
| 60 х 40 | 1,4 | 78 | 990 |
| 60 х 40 | 1,5 | 78 | 1065 |
| 60 х 40 | 1,8 | 78 | 1270 |
| 60 х 40 | 2 | 78 | 1410 |
Number of square profile pipes in 1 pack
| Square tube size, mm | Wall thickness, mm | Quantity in 1 pack, pcs. | Weight of 1 pack, kg |
|---|---|---|---|
| 15 х 15 C/R | 1 | 357 | 920 |
| 15 х 15 C/R | 1,15 | 357 | 1050 |
| 15 х 15 C/R | 1,2 | 357 | 1090 |
| 15 х 15 C/R | 1,4 | 357 | 1260 |
| 15 х 15 C/R | 1,45 | 357 | 1305 |
| 15 х 15 C/R | 1,5 | 357 | 1350 |
| 20 х 20 C/R | 1 | 357 | 1285 |
| 20 х 20 C/R | 1,15 | 357 | 1475 |
| 20 х 20 C/R | 1,2 | 357 | 1530 |
| 20 х 20 | 1,4 | 357 | 1775 |
| 20 х 20 | 1,45 | 357 | 1840 |
| 20 х 20 | 1,5 | 357 | 1905 |
| 20 х 20 | 1,7 | 357 | 2130 |
| 20 х 20 | 1,8 | 357 | 2250 |
| 22 х 22 C/R | 1,2 | 255 | 1185 |
| 22 х 22 C/R | 1,4 | 255 | 1370 |
| 22 х 22 C/R | 1,45 | 255 | 1420 |
| 22 х 22 | 1,5 | 255 | 1470 |
| 22 на 22 | 1,7 | 255 | 1650 |
| 22 х 22 | 1,8 | 255 | 1745 |
| 25 х 25 C/R | 1 | 255 | 1185 |
| 25 х 25 C/R | 1,15 | 255 | 1335 |
| 25 х 25 C/R | 1,2 | 255 | 1390 |
| 25 х 25 | 1,4 | 255 | 1645 |
| 25 х 25 | 1,45 | 255 | 1695 |
| 25 х 25 | 1,5 | 255 | 1750 |
| 25 х 25 | 1,7 | 255 | 1975 |
| 25 х 25 | 1,8 | 255 | 2080 |
| 30 х 30 C/R | 1,15 | 195 | 1227 |
| 30 х 30 C/R | 1,2 | 195 | 1280 |
| 30 х 30 | 1,4 | 195 | 1490 |
| 30 х 30 | 1,45 | 195 | 1545 |
| 30 х 30 | 1,5 | 195 | 1595 |
| 30 х 30 | 1,7 | 195 | 1800 |
| 30 х 30 | 1,8 | 195 | 1905 |
| 30 х 30 | 1,9 | 195 | 2010 |
| 30 х 30 | 2 | 195 | 2115 |
| 40 х 40 C/R | 1,15 | 110 | 935 |
| 40 х 40 C/R | 1,2 | 110 | 975 |
| 40 х 40 | 1,4 | 110 | 1135 |
| 40 х 40 | 1,45 | 110 | 1175 |
| 40 х 40 | 1,5 | 110 | 1215 |
| 40 х 40 | 1,8 | 110 | 1455 |
| 40 х 40 | 2 | 110 | 1615 |
Get the price per 1 tonne
Which pipe is stronger: round or square?
Profile tubes (square, rectangular) are stronger than round tubes because they have stiffening ribs.
The metal tube has a large contact area to support the load, unlike round tubes where the load rests on a single point.
However, we have been able to turn this disadvantage of round tubes into an advantage by using them in the manufacture of racks for storing tyres and wheels.
How to join profile pipes without welding?
Welding of rolled metal tubing can be replaced by bolted connections.
What kind of pipe do you need for a fence or shed?
Pipe for metal fencing, fences and sheds is used differently. It all depends on what kind of fence will be: from corrugated steel, rabica mesh, only from pipes, wooden, with wrought iron elements, etc. Also the choice of pipe for the fence is influenced by the weight of one proposed section, and to what depth it will be necessary to dig it into the ground.
The greatest demand is profile pipe 20×40, pipe 60×40, pipe 15×15, square pipe 20×20, 40×40.
Also pipe 20×40 is in demand in the manufacture of sofa frames and metal furniture;
To make the fence pipe last longer, take care to buy plugs. The plugs will keep moisture out and the pipe fence will last for many years.
Application of steel electric-welded pipes
Sectional tubes are used everywhere. Everyone has an ironing board made of square tubing in their home.
Beautiful designer tables and offices are made with chrome-plated legs of 20×40 furniture tubing. They reflect the surrounding interior and give the impression of a light, floating structure.
Metal beds made of profiled and round tubes have found their owners among people who appreciate minimalism in the interior and among allergy sufferers. After all, the surface of the furniture tube, coated with corrosion-resistant powder paint, is easy to wipe clean every day, unlike printed velour headboards.
Outdoor café and restaurant terraces, umbrella structures, sports car decks, modular house structures and much more require the use of steel tubing in construction.
Tubing is used to create strong frames for metal doors and garage doors, MAFs (commercial mobile pavilions) and formwork for construction.
Thin-walled tubes make it possible to create lightweight, yet strong and durable structures.
Packaging of thin-walled electric-welded pipes
Ipris-Profil packs pipes in bundles of square or rectangular section. Wooden sticks are placed around the circumference of the bundle and the whole bundle is tied with a metal band.
This method of packing prevents the bundle from breaking (electro-welded pipes do not move under the tape) and ensures full loading of vehicles.
How is the sale of steel pipes from the factory in Kharkov?
The buyer leaves an application: “buy profile pipes”, specifies the required volume and length.
We produce thin-walled electric-welded pipes in measured lengths from 3.5 m to 7.8 m. You can buy a pipe of the required length cut in the mill line.
