CARPET ROLL STORAGE CAROUSEL. ROLLER PATERNOSTER

The vertical carpet roll storage carousel is an automated elevator (carousel) type rack designed to store, display, measure, cut and sell material without removing the roll from the unit.

Download catalog

Description

Most often on the carousel-type stands in trade, production facilities and distribution centers are placed:

linoleum;
carpeting;
stretch ceiling film;
film for furniture facades;
artificial leather;
car tires.

IPRIS-PROFIL CAROUSEL SYSTEM RANGE OF MODELS FOR LINOLEUM, CARPET AND TYRE ROLLS

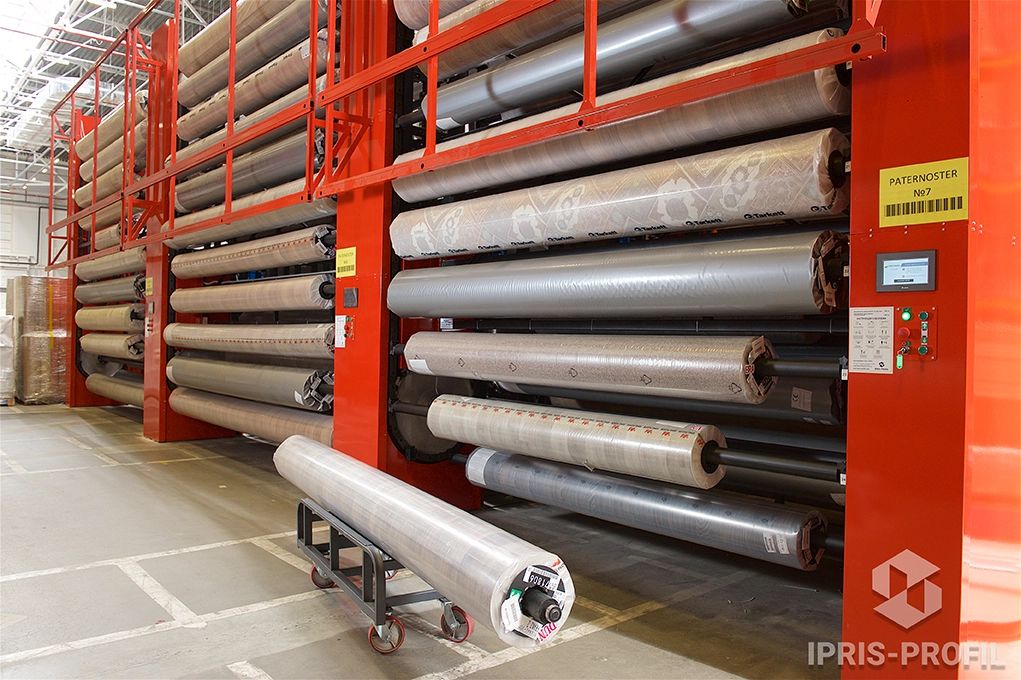

Carpet roll paternoster single row, depending on the height, can hold 13-30 pcs of rolls with a diameter of 400 mm or 19-20 with a diameter of 600 mm

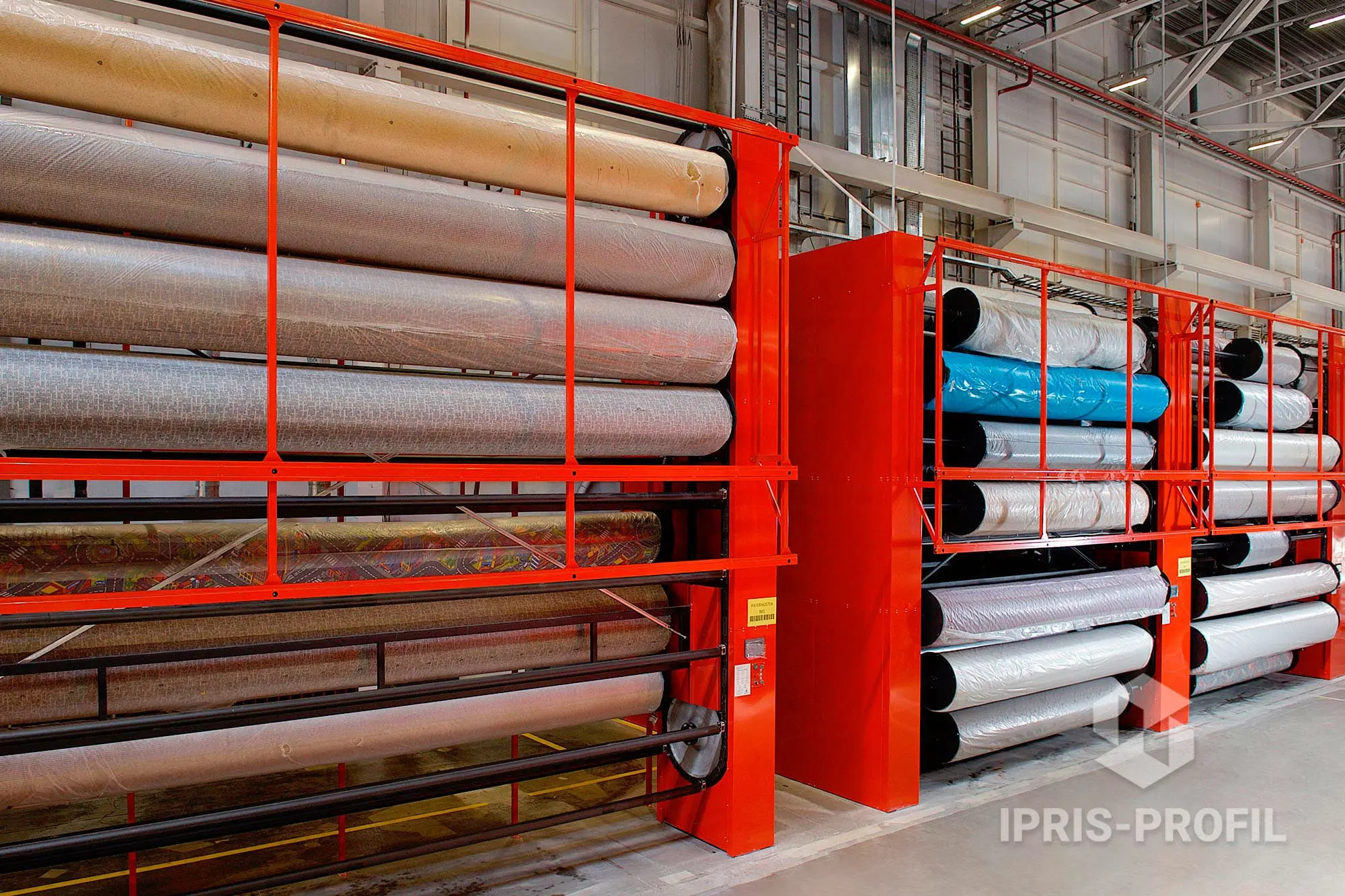

Carousel for storing rolls of carpet, multi-row “SLADOCK” M2 capable of holding 45 rolls with a diameter of 400 mm or 30 rolls with a diameter of 600 mm.

Paternoster for rolls of carpet “SLADOCK” M3 capable of storing 67 rolls with a diameter of 400 mm or 44 rolls with a diameter of 600 mm.

Wire carousel. Depth 700 mm. Can be installed in a section of a commercial shelving unit with a depth of 800 mm or more. Capacity 52 reels

Carousel for 155/80 R13 tires holds 31 pcs, 235/45 R17 – 21 pcs

*Shaft repositioning step for all types of paternoster is 100 mm.

Carpet trolleys

Learn more

Request a call

Carousel mate flooring cutter

Learn more

Request a call

Mounted roll cutting machine

Nonwovens cutter

Working principle of linoleum and carpet sales equipment

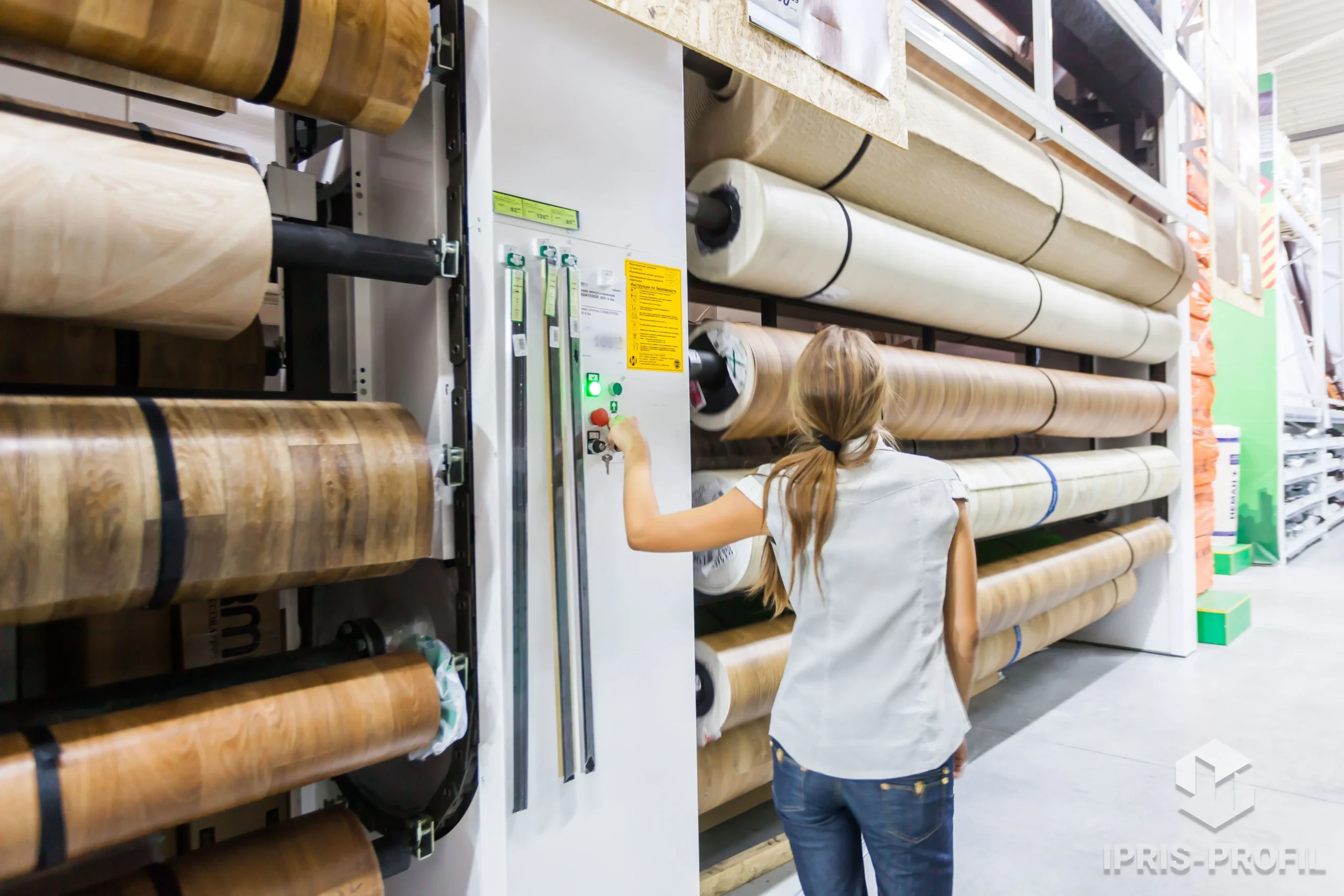

A simple push-button automated carousel control system is designed to feed the selected bale to the consumer.

The control unit is based on a Delta 7″ touch panel and a built-in programmable controller. The system is controlled by the operator using push buttons and a status display panel, as well as inputting data to allocate the required item to each type of flooring.

By turning the key in the control unit, the electrical equipment of the carpet and vinyl paternoster structure is connected to the 380V mains. Further control is done by push buttons. When the start button is pressed, the electric motor activates the side chains that move the rollers in the desired direction.

Individually cast aluminum “stars” with the logo and the name of the official site of the factory Ipris-Profil in the design of paternoster confirm the authenticity of the product and protect the buyer from falsification and counterfeiting.

Delivery of the equipment to the customer’s site is made in disassembled form anywhere in Ukraine.

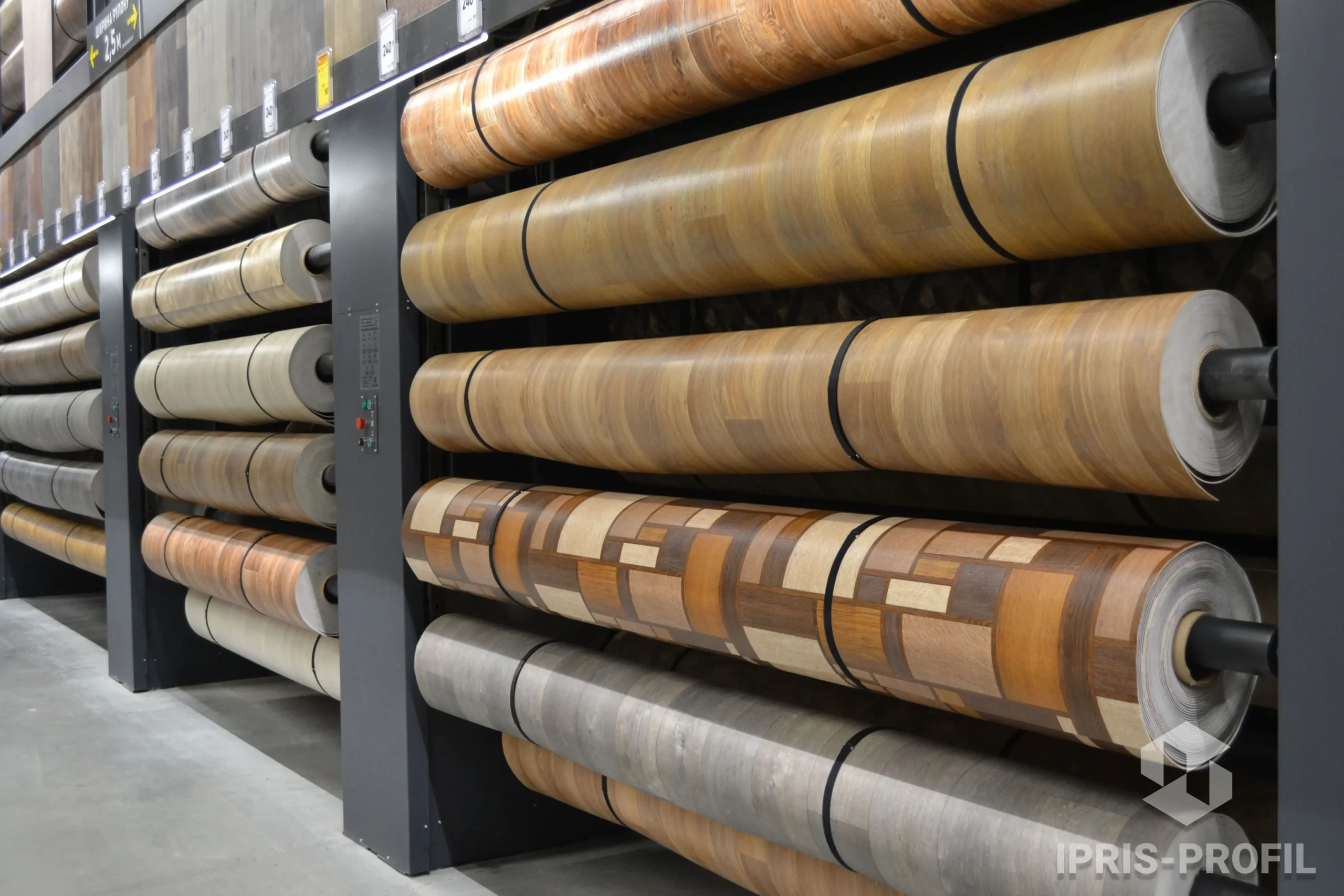

1. SINGLE ROW VERTICAL CAROUSEL STORAGE SYSTEM

To date, we have developed and manufactured 24 different sizes of single row vertical carousel storage system for all standard rolls with the widths shown in Table 1.

In the front part of the elevator type rack there is a plate for roll samples. It is a structure with sample fastening elements, which is mounted on the front of the paternoster and serves as protection.

This tablet can be left empty. Then all rolls on the “front” side will be visible to the customer.

For the rear of the carpet and vinyl paternoster, there is a rear safety screen, a structure that mounts to the rear of the paternoster and serves as a protective screen.

Table 1. Dependence of single row roll storage width on the width of the roll material

Roll width, mm	Roll storage width, mm	Roll storage depth, mm
2000	2970	1000
2500	3470
3000	3970
3500	4470
4000	4970
5000	5970

Table 2. Dependence of the number of loading axes on the height of single-row roll storage and bale diameter.

Conditional height roll storage height, mm	Number of transport rolls at bale diameter				Roll storage height, mm
	Number of transport rolls at bale diameter				by roll diameter 400 mm	by roll diameter 600 mm
	300 mm	400 mm	500 mm	600 mm	by roll diameter 400 mm	by roll diameter 600 mm
H 3000	18	13	10	9	2973	3073
H 3100	18	14	1 1	9	3073	3173
H 3300	20	15	12	10	3273	3373
H 3500	21	16	12	10	3473	3573
H 3600	22	16	13	1 1	3573	3673
H 3700	22	17	13	1 1	3673	3773
H 3900	24	18	14	12	3873	3973
H 4100	25	19	15	12	4073	4173
H 4200	26	19	15	13	4173	4273
H 4300	26	20	16	13	4273	4373
H 4500	28	21	16	14	4473	4573
H 4700	29	22	17	14	4673	4773
H 4800	30	22	18	15	4773	4873
H 4900	30	23	18	15	4873	4973
H 5000	31	23	18	15	4973	5073
H 5100	32	24	19	16	5073	5173
H 5300	33	25	20	16	5273	5373
H 5400	34	25	20	17	5373	5473
H 5500	34	26	20	17	5473	5573
H 5700	36	27	21	18	5673	5773
H 5900	37	28	22	18	5873	5973
H 6000	38	28	22	19	5973	6073
H 6100	38	29	23	19	6073	6173
H 6600	40	30	24	20	6273	6373

If, among the presented models, you can not find the one that will best solve the tasks, we will develop and launch in production a new model of automated carousel type racking.

2. ROLL STORAGE MULTI-ROW FOR ROLL MATERIALS “SLADOCK” M2

The SLADOCK M2 carpet and vinyl paternoster is designed for more compact storage of a large number of rolls. This elevator-type rack can be customized for rolls of standard widths: 2m; 2.5m; 3m; 3.5m; 3.5m; 4m.

For example, a single-row carousel for carpet rolls with a similar height holds 24 rolls of linoleum, 400 mm in diameter, and “SLADOCK” M2 – 45 rolls. This design of the linoleum stand is in demand in production shops and distribution centers due to its small size but large capacity. At the same time, the equipment can also be used for selling goods, as it has a demonstration area.

Number of transport rolls at bale diameter		Height of roll storage on cladding, mm	Depth roll storage, mm
400 mm	600 mm
45 pcs.	30 pcs.	5090	2532

3. CARPET AND VINYL ROLL CAROUSEL “SLADOCK” M3

Carpet carousel “SLADOCK” M3 with a conventional height of 5 m is designed for 67 rolls of linoleum, with a diameter of 400 mm.

Bale equipment is manufactured to order for standard bale widths:

2m; 2.5m; 3m; 3.5m; 4m.

Number of transport rolls at bale diameter		Conditional height of roll storage, mm	Depth roll storage, mm
400 mm	600 mm
67 pcs.	44 pcs.	5000	4064

4. VERTICAL CARUSEL SYSTEM FOR CAR TIRES

A tire carousel system allows you to utilize room height, save space and safely store, display and sell automotive tires.

The tire stand is designed for a maximum allowable tire size of 668 mm and a maximum load of 6000 kg.

Tires should be placed evenly across the usable width of the transport shaft.

*We can also offer the classic tire rack.

Number of transport rolls at bale diameter				Useful length of roll storage, mm	Height of roll storage, mm
155/80 R13	195/65 R15	225/50 R17	235/45 R17	Useful length of roll storage, mm	Height of roll storage, mm
31 pcs.	25 pcs.	22 pcs.	21 pcs.	4950	5700

5. WIRE CAROUSEL

We can offer a convenient solution for storing, measuring and cutting wire wound on spools. Or we can produce a structure with trays instead of axles for use in the storage of hardware or other small parts.

Number of transport shafts with spool diameter	Weight of 1 reel	Roll storage capacity	Roll storage height, mm	Roll storage width, mm
450 mm
13 pcs.	30 kg	52 reels	4500	2700

Order a paternoster

Can't find the right equipment?

Seek expert advice!
